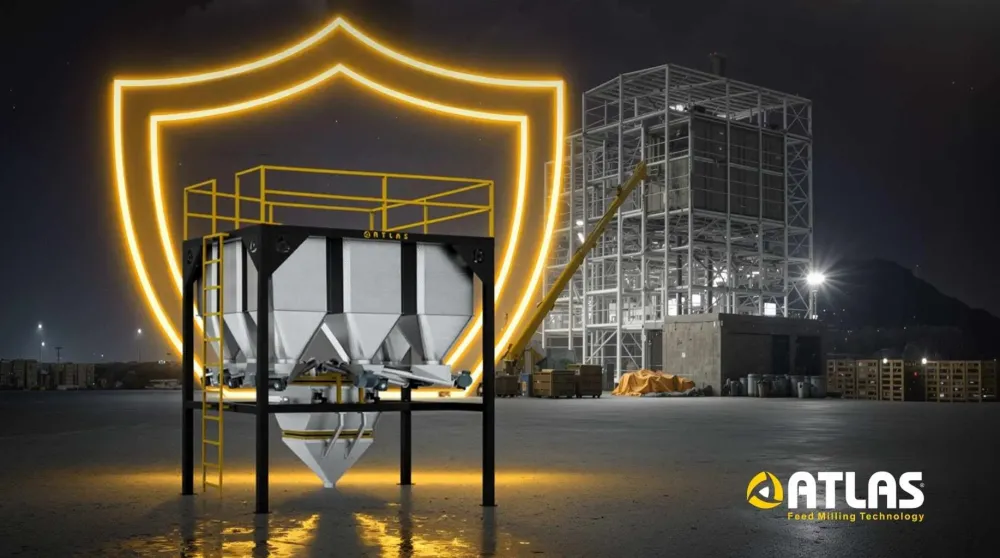

Liquid Additive Equipment in Feed Mills

Liquid Additive Equipment in Feed Mills: The Critical System for Ration Quality

Liquid additive equipment in a feed mill is an automated system that transfers liquid components — such as fat, molasses, vitamin solutions, and enzymes — into the feed mixture at precisely measured doses and in a homogeneous distribution. Incorrectly dosed liquid additives reduce the nutritional value of the ration, negatively impact animal performance, and increase cost per ton.

Since 2002, Atlas Yem has been designing liquid additive equipment as part of an integrated process line alongside mixing systems, within its ISO 9001:2015-certified feed technologies portfolio produced in Konya.

What Is Liquid Additive Equipment and Why Does Feed Production Need It?

Liquid additives are used to increase the energy density of feed rations, improve palatability, and enhance pellet quality through binding effects. The most common liquid additives include:

Fat and animal fat (energy source)
Molasses (palatability enhancer + binder)
Vitamin and mineral solutions (micronutrient supplementation)
Enzymes and organic acids (digestibility support)
Antimicrobial additives (feed safety)

The effectiveness of these additives depends not only on their quality but also on precise dosing and homogeneous distribution. That is the role of liquid additive equipment: producing every ton to the same standard.

What Happens to the Feed Ration Without Liquid Additive Equipment?

Manual or inaccurate liquid additive application causes three critical losses in the production line:

Ration homogeneity breaks down: Over-dosing in one batch, under-dosing in another → inconsistent animal performance
Pellet quality drops: Insufficient molasses and fat → lower PDI (Pellet Durability Index), higher fines
Costs rise: Imprecise dosing → additive waste and hidden cost per ton

Atlas Yem's liquid additive systems, equipped with flow meters and PLC-controlled pump units, eliminate all three risks simultaneously.

How Does Atlas Yem Liquid Additive Equipment Integrate into the Production Line?

Within Atlas Yem's feed technologies portfolio, liquid additive equipment is positioned as the heart of the process line alongside Mixing Systems. Its place in the production flow is as follows:

1. Raw Material Preparation → Crushing Systems + Dosing Units
2. Process Line → Mixing Systems + Liquid Additive Equipment ← (this stage)
3. Forming & Quality → Pelletizing Systems + Screening + Ventilation (Cooling)
4. Logistics → Transport + Routing + Storage + Packaging Units

This integration is supervised via SCADA and PLC infrastructure, guaranteeing that the liquid additive reaches the mixer inlet at the exact correct dosage. Temperature-controlled storage and heated pipe lines can also be incorporated to prevent enzyme activity loss due to heat exposure.

Atlas Yem Full Technology Portfolio: From Liquid Additives to Recycling

Liquid additive equipment is just one component of Atlas Yem's integrated feed mill solution. The category map below shows all systems used in turnkey feed mill projects:

Feed Technologies

Pelletizing Systems
Crushing Systems
Mixing Systems
Screening Systems
Dosing Units
Packaging Units
Ventilation (Cooling) Systems
Transport Systems
Routing Equipment
Storage Systems
Liquid Additive Equipment

Flake Technologies

Flake Rollers (Flaking Mill)
Flake Steam Tower (Steam Chest)
Flake Drying Systems
Crushing Systems

Recycling Technologies

Shedder
Recycling Crusher Machine
Recycling Package Opening Machine
Trommel Sieve

Manual Liquid Additive vs. Automated System: Which Is More Profitable?

Criterion	Manual Additive Application	Atlas Yem Automated System
Dosing accuracy	Operator-dependent, ±5–10% deviation	Flow meter control, ±0.5% accuracy
Homogeneity	Variable batch-to-batch	Consistent ration quality every ton
Pellet PDI value	Low (inconsistent binder)	High (optimized molasses/fat ratio)
Energy/maintenance cost	High (human error + waste)	Low (up to 20% savings)
Traceability	No records	PLC/SCADA log, full documentation
Food safety compliance	Contains risk	ISO 9001:2015 certified process

Frequently Asked Questions - FAQ

When does a feed mill need liquid additive equipment?

Once daily production capacity exceeds 5 tons, manual additive application significantly increases error rates and additive waste. Automated liquid additive equipment is essential when documented dosage traceability is required for pellet quality, animal performance consistency, or food safety certification.

Can a liquid additive system integrate with an existing pellet press?

Yes. In Atlas Yem systems, the liquid additive unit can be activated before the conditioner inlet or at the mixer outlet. Both positions operate in full synchronization with PLC-controlled pumps and flow meters.

Do high-viscosity liquids like molasses and animal fat cause system problems?

No. Atlas Yem liquid additive systems are designed with heated storage tanks, insulated pipe lines, and specialized pump configurations for high-viscosity fluids. This ensures that molasses and fat enter the system at the correct flow rate even in cold environments.

What certifications do Atlas Yem liquid additive systems carry?

Atlas Yem manufactures all equipment within an ISO 9001:2015 certified production process. Every system undergoes load testing that simulates real field conditions before delivery and is documented with parameter log records.

Can liquid additive equipment be retrofitted to an existing feed mill?

Yes. Atlas Yem's modular design approach allows integration into existing mixing and pelletizing lines. Prior to commissioning, the engineering team conducts an on-site analysis of the existing line capacity and pipe routing structure.
